Oil/Water Separators

Tramp oil is a major source of problems associated with water miscible cutting and grinding fluids.

Tramp oil contributes to the growth and formation of:

• coolant-destroying bacteria
• undesirable residues on machine tools and workpieces
• smoke and oil mist in shop atmospheres

These problems result in:

• shortened coolant life
• poor material removal rates
• poor surface finish and size control
• decreased tool and wheel life

Numerous devices ("floating ropes," wheels, and belts) have been developed over the years to remove "free floating" tramp oil from the surface of coolant. While they have all worked to one degree or another, they generally have been either "troublesome," high maintenance, relatively ineffective, or able to operate only on limited liquid level fluctuations.

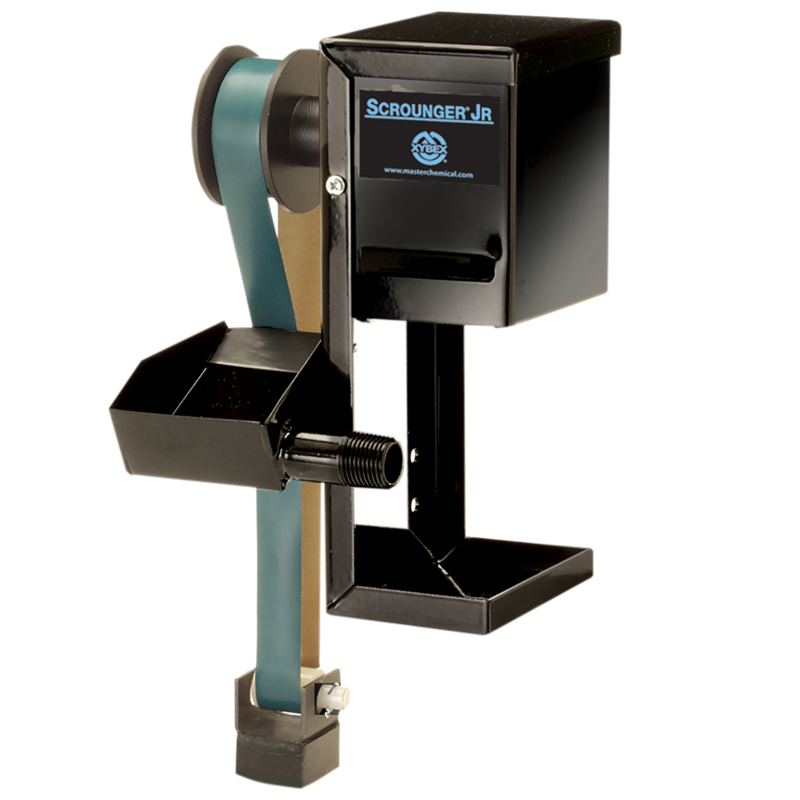

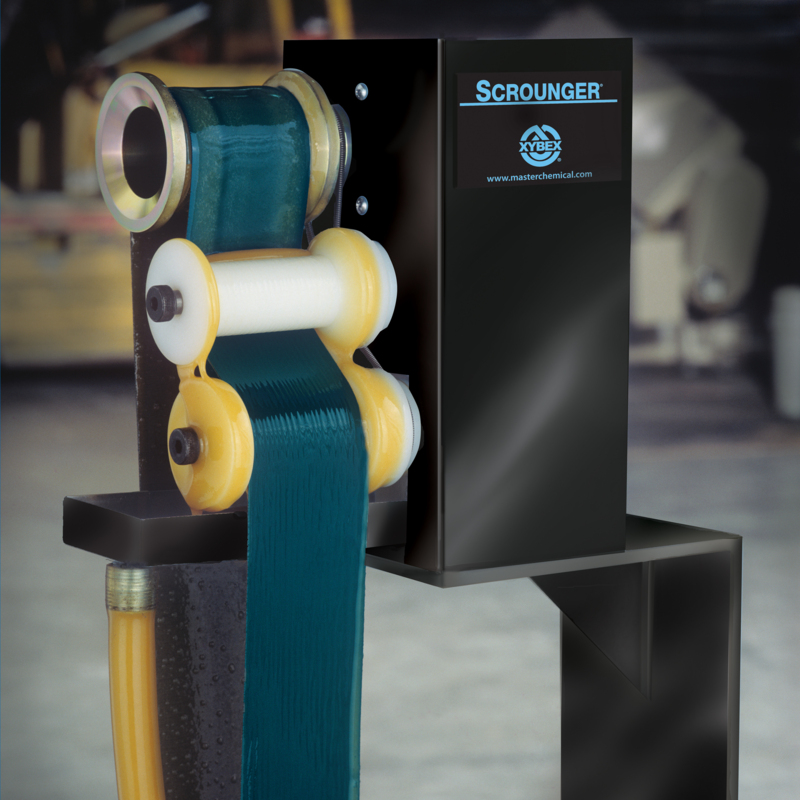

As a "belt-type" skimmer, these units are effective in removing floating oil from widely fluctuating liquid levels of coolants or parts washing solutions. The SCROUNGER features a revolutionary new oleophilic belt and a totally new concept of stripping the separated oil from the belt. The SCROUNGER Jr. uses the same "oil loving" belt, but uses a more compact scraper blade to strip the separated oil from the belt.

Features

• 115 volt, single phase, 50/60 Hz
• heavy-duty, impedence-protected, fan-cooled drive motor with hardened shaft and needle bearings (220 volt, single phase, 50 Hz also available)
• open, accessible oil-collecting tray with a convenient drain connector
• "oil loving" oleophilic belt (purchased separately)
• heavy-duty steel construction, with industrial-grade enamel paint

Benefits

• fast, simple belt changing
• low maintenance
• lower hang roller that will not fall off in the machine sump even in turbulent conditions

Options

• dewatering tray
• portable kit
• special length belts available on special order
• special belt materials available for high temperature or pH applications on special order

SCROUNGER Jr Belts

• all belts 1" [25mm] wide
• 24" [610mm]
• 32" [815mm]
• 44" [1120mm]

A perfect match-up with the PurifierPlus is the XYBEX ChipOut. It is also a compact, easy-to-use, affordable solution for optimizing production. It simply and effectively sucks out the coolant, chips, and swarf to collect and filter all solid impurities and return clean coolant to the tank.

Get the most from your coolant with ChipOut. It literally pays for itself in no time with significant cost savings.

XYBEX ChipOut
• Separates surface debris, bottom chips and swarf, and sediment from coolant
• Extends coolant life
• Improves surface finish on parts
• Reduces maintenance
• Uses diaphram pump air pressure, no electricity required
• High suction power, flow rate of 180 liters/min
• Runs during production without shutting off machine tools
• Adjustable stainless steel filters: standard mesh 380 microns; optional: 830 microns and 180 microns
• Optional floating device for maximum tramp oil collection
• Portable and easy to use with multiple machines
• Operates with water-soluble coolants or neet oils
Cost effective ChipOut adds up to big savings
• Reduces annual coolant cost
• Reduces expensive parts rejects
• Reduces maintenance to a minimum

Looking for a fast, affordable way to have longer coolant life, reduce maintenance, and achieve better machinability and surface finish? Hardworking ChipOut Plus delivers all that and more in a compact, portable system that can hook up to machines throughout the shop.

It does double time, as both a centrifugal and magnetic separator for water-based cutting fluids or neat oils. It’s simple to use, powerful, and efficient.

First, the suction hose draws in the liquid and impurities. The filtration bucket traps large impurities before the sludge-containing fluid enters the centrifugal separator where fine particles are separated out by centrifugal force. The sludge then enters the powerful magnetic separator which efficiently removes magnetic metallic shavings and particles. Just like its name implies, it takes out chips - plus more!

XYBEX ChipOut Plus
• Separates surface debris, magnetic dust and shavings, chips, swarf, and sediment from coolant
• Extends coolant life
• Improves surface finish on parts
• Reduces maintenance
• Separates using centrifugal and magnetic force
• Provides extremely fine filtration
• No need to stop the machine
• Quick filtration, easy to operate
• Portable, use with multiple machines
• No consumables needed
Use hardworking, cost effective ChipOut Plus to reduce costs and build profits
Save time and build up profits with ChipOut Plus.
• Reduces annual coolant cost
• Reduces maintenance and manpower
• Reduces costly parts rejects

The portable, cost-effective XYBEX PurifierPlus system pays for itself with material cost savings, reduced downtime and recycling costs. Not only does it enhance production and make the workplace cleaner, it also is better for employee health and the environment.

Unlike units which simply separate machine tramp oil (the unwanted byproduct of the machining/metalworking process) from coolant, PurifierPlus has an ozone disinfection function which kills bacteria. Not only is the coolant cleaned and lasts longer, it’s purified and reused, and the subsequent problematic stench from bacteria and fungal growth is eliminated.

Improve production, reduce costs, and experience a cleaner workplace with PurifierPlus.

XYBEX PurifierPlus
• Separates free tramp oil and extends coolant life
• Reduces tool wear and costly parts rejects
• Easy to use with a handy set-timer to operate on its own
• Adjustable flow rate filter from 10 to 30 liters/hr
• Kills bacteria (for best results run 1 hour for each 100 liters in sump; ozone function disinfects at 500 mg/hr)
• Built-in pH detector (optional) adjusts pH to control range
• Portable for use on multiple machines in the facility
PurifierPlus quickly pays for itself in savings
• Saves 10% to 25% on annual coolant cost
• Saves 30% to 50% on additional water cost
• Saves 10% to 25% on tooling costs and part reworks
• Reduces clean-up time 60% to 80% annually
